LPD6803, LPD8806, LPD1882, LPD1889, LPD6812, LPD1883, LPD1886, DMX512, HDMX, APA102, MY9221, DZ2809, SM16716, SM16711, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, INK1003, TM1812, TM1809, TM1804, TM1803, TM1913, TM1914, TM1926, TM1829, TM190, TM1814, BS0901, BS0902, BS0825, BS0815, LY6620, BS0825, LD1510, LD1512, LD1530, LD1532, TLS3001, TLS3002, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, 74HC595, 6B595, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, HEF4094, A8012, etc.
Note: H803TV supports more than the chips listed above (some chips have the same sequence diagram, such as UCS2903 has the same sequence diagram with UCS1903, so H803TV supports them all).
Frequently Asked Questions

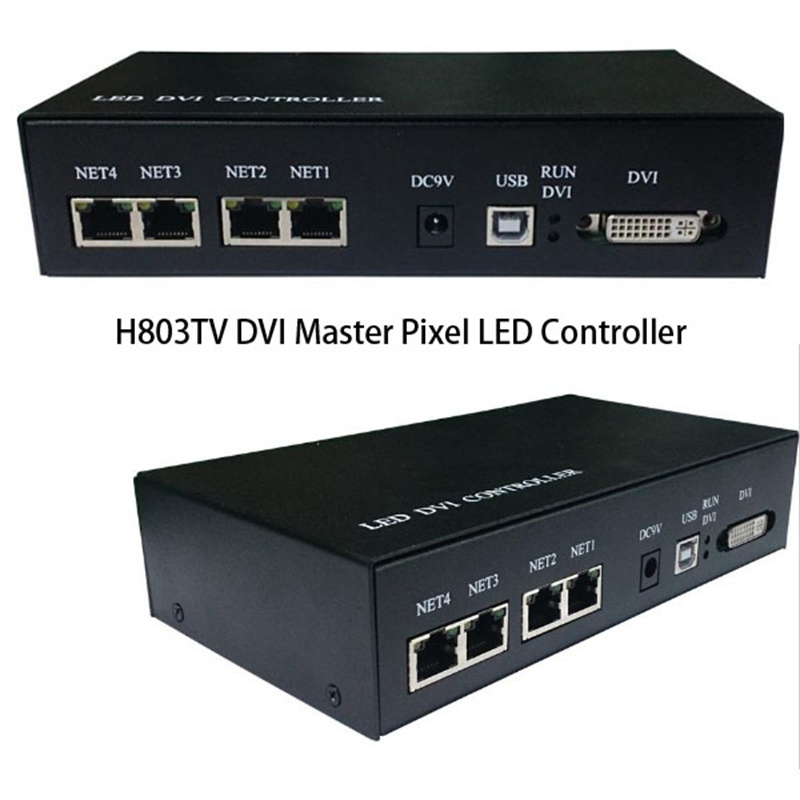

What is the maximum pixel capacity that the H803TV controller can drive?
The H803TV controller features four network interfaces that can drive a maximum of 400,000 pixels in total.
Which operating systems and resolutions does the H803TV support?
It supports Windows operating systems (both 32-bit and 64-bit) via an autorun USB. Supported resolutions include 1024x768, 1280x720, 1280x960, 1280x1024, 1360x765, 1360x1020, 1600x900, and 1600x1200.
What are the recommended auxiliary controllers and software for H803TV?
The auxiliary slave controllers compatible with the H803TV are H802RA and H801RC. The recommended auxiliary software is "LED studio software".
What is the data transmission protocol and maximum range?
The data is transmitted based on the standard Ethernet protocol, which allows for a transmission distance of up to 100 meters.
Can the four ports on the H803TV drive different driver chips simultaneously?
Yes, the four ports are separated and configured individually, meaning they can drive different chips. The four ports can control up to 1020 slave controllers in total, with each port controlling up to 255 slave controllers.
What should I do if my specific driver chip is not listed in the specifications?
H803TV supports more chips than those listed in the description. If your chip shares the same sequence diagram with a listed chip (for example, UCS2903 shares the same diagram with UCS1903), it is fully supported by the controller.
