Xiaosan Light
1 / 3

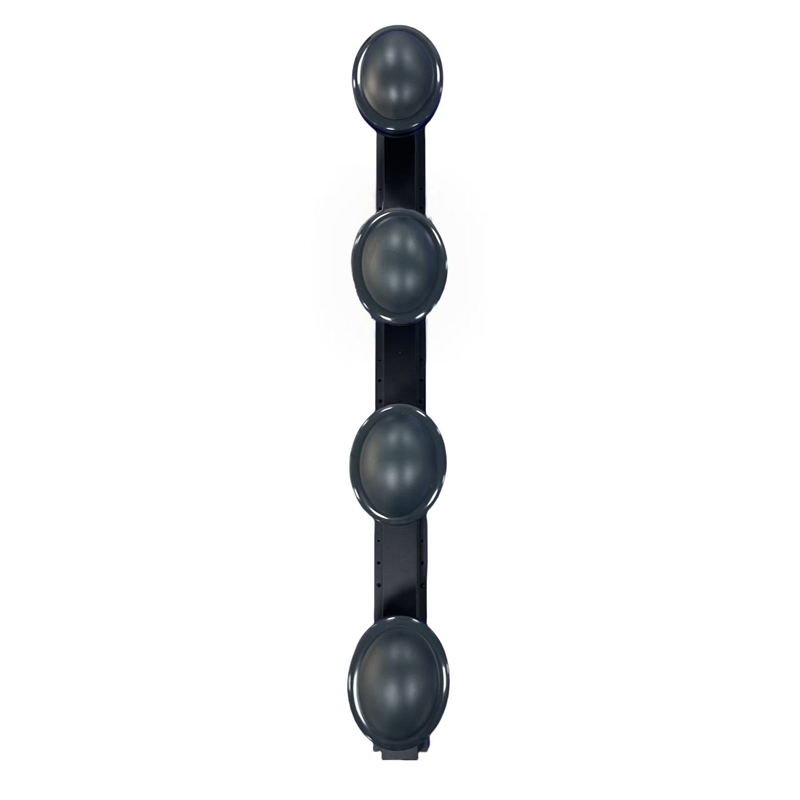

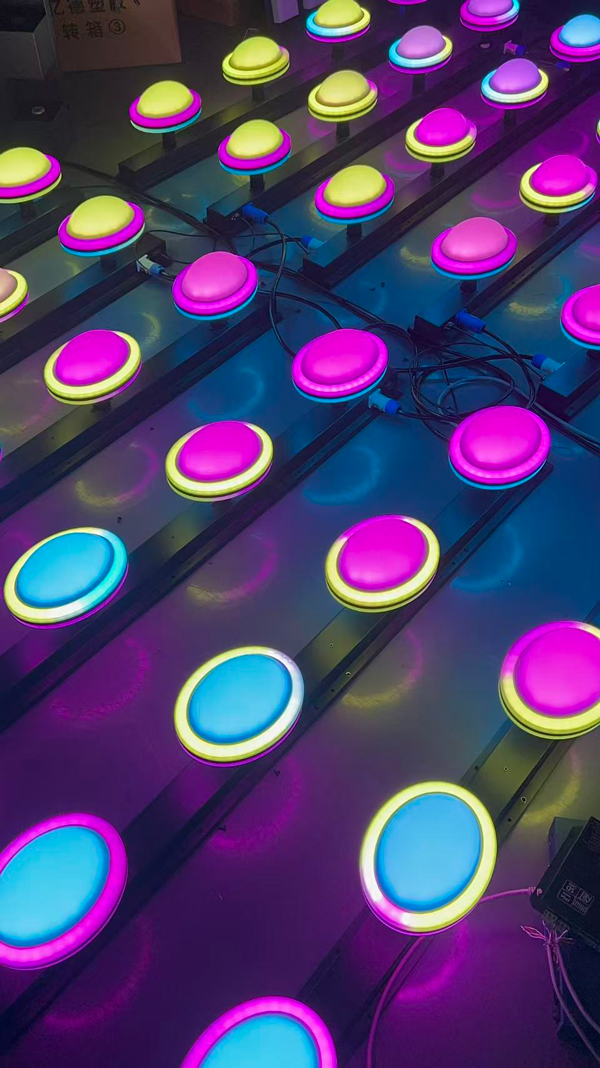

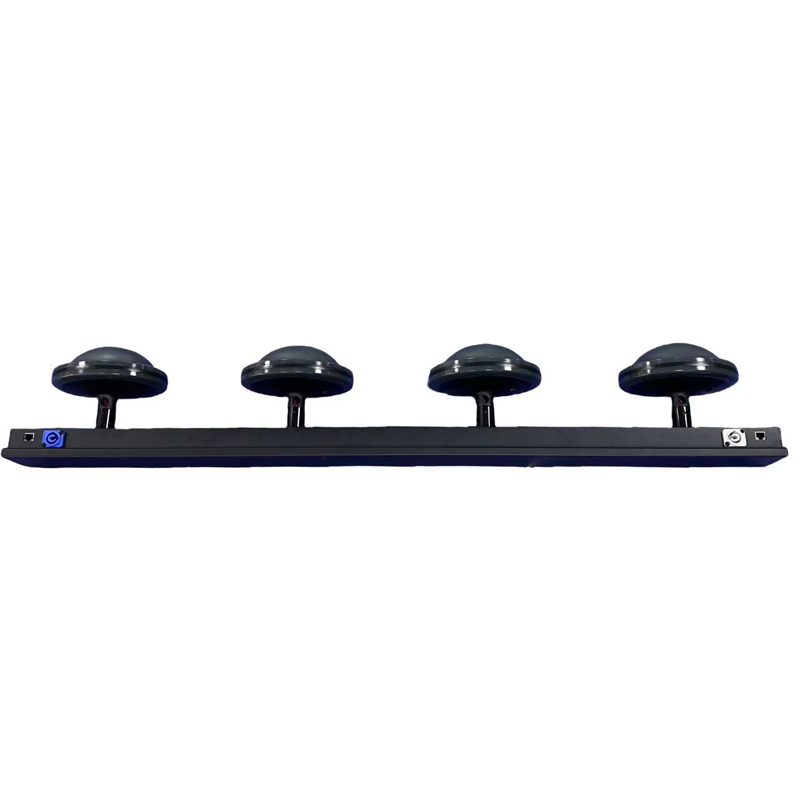

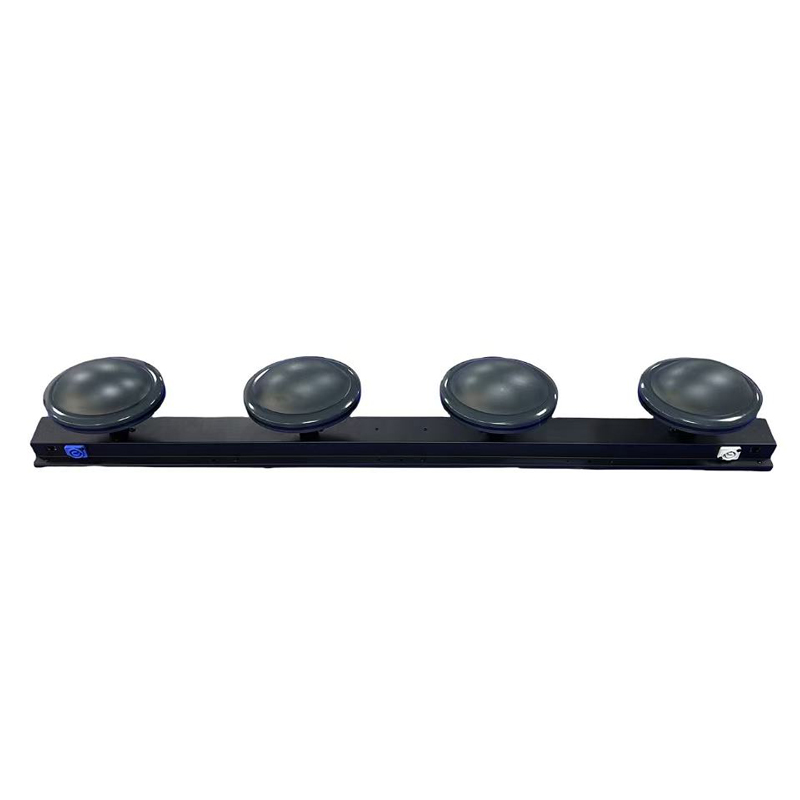

Kinetic 'UFO' lights, when used with our controller, pulsate with the music, creating a wonderful atmosphere for bars, KTVs, Concert, Nightclub, Disco and other similar venues. 'UFO' light is the an ideal choice for your entertainment project.
| Name of Product | 'UFO' Light |
| Voltage | DC24V |
| Power | 72w |
| Maximum Power | 76w |
| Product Size (L* W * H) | 600*600*172mm |
| Lamp Bead Mode | SMD3535 |
| Place of Original | China |
| IC Type | WS2818 |
| Channel | RGB |
| Pixel Numbers | 100 pixels |
| Material | PC + ABS + Iron |
| Light Source Life | 50,000 hours |
| Control Method | TTL |
| Waterproof Level | IP33 |
| Model No. | XS-UFO-01 |
| Working Temperature | -40°C to 70°C |
| Package Type | Neutral Packing or As Per Your Request |
| Weight | 3.4KG |
| Signal Protocol | SPI |
| Warranty | 1 Year |
| Applications | Disco, Nightclub, Bars, lounges, stages, performances, rentals, KTV, etc |
| Channel | Value | Function |
|---|---|---|
| 1 | 0 - 255 | Total dimming, 0 is the black field, and 255 is the brightest. 0% - 100% |
| 2 | 0 - 255 | RED 0% - 100% |
| 3 | 0 - 255 | GREEN 0% - 100% |
| 4 | 0 - 255 | BLUE 0% - 100% |
| 5 | 0 - 255 | Adjusting the white component (only valid for RGBW lamps) 0% - 100% |
| 6 | 0 - 255 | Select a program, where four values correspond to one program. 0-3 represents program 1, 4-7 represents program 2, 8-11 represents program 3, 12-15 represents program 4. By analogy, a total of 64 programs can be supported. |
| 7 | 0 - 255 | Playback speed: 0 is the slowest, and the speed can be continuously adjusted from 1 to 255. |
| 8 | 0 - 255 | 0 represents normal playback, 255 represents pause. 0% - 100% |
These lights are ideal for entertainment venues such as bars, KTVs, Concerts, Nightclubs, Discos, lounges, stages, and rental performances, creating a synchronized atmosphere with the music.
For a 220V power connection, you can connect up to 20 sets of lights using a 1 square millimeter cable. For a 110V power connection, it can support up to 10 sets of lights.
It utilizes a TTL control method and supports the SPI signal protocol. The DMX control setup operates on 8 channels for detailed adjustments, including dimming, RGB color mixture, and program speed.
The 'UFO' light features a light source life of 50,000 hours and has a waterproof rating of IP33, rendering it suitable for indoor entertainment settings.
During installation, it is crucial to ensure that all Corn Light Columns are aligned and installed in the exact same direction to maintain uniform performance.
To enable remote control, the network cables must be cascaded, and the very first remote control unit must be directly linked to the main computer control system.
