Xiaosan Light
1 / 5

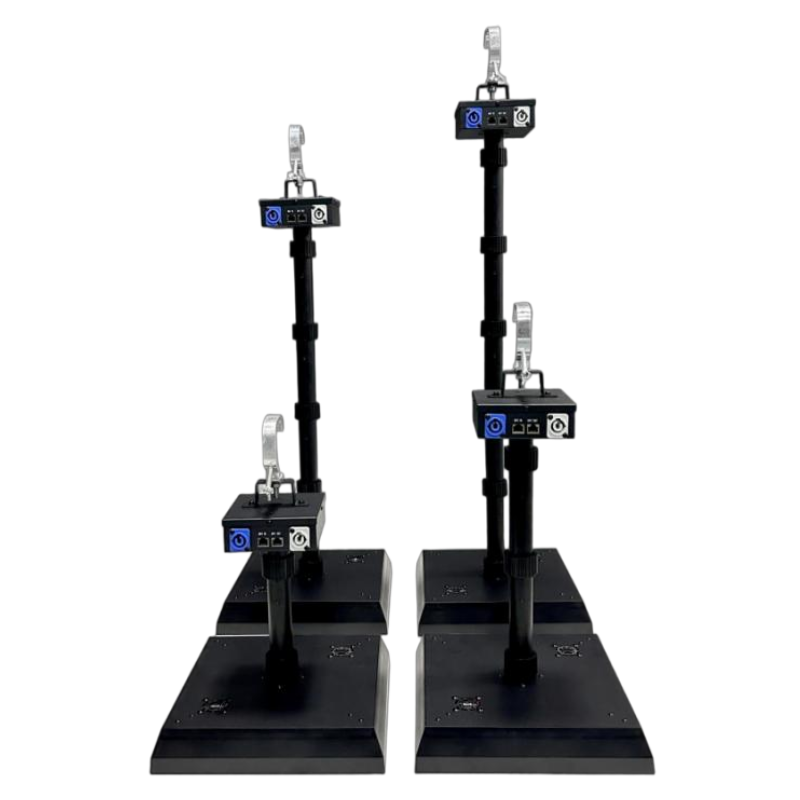

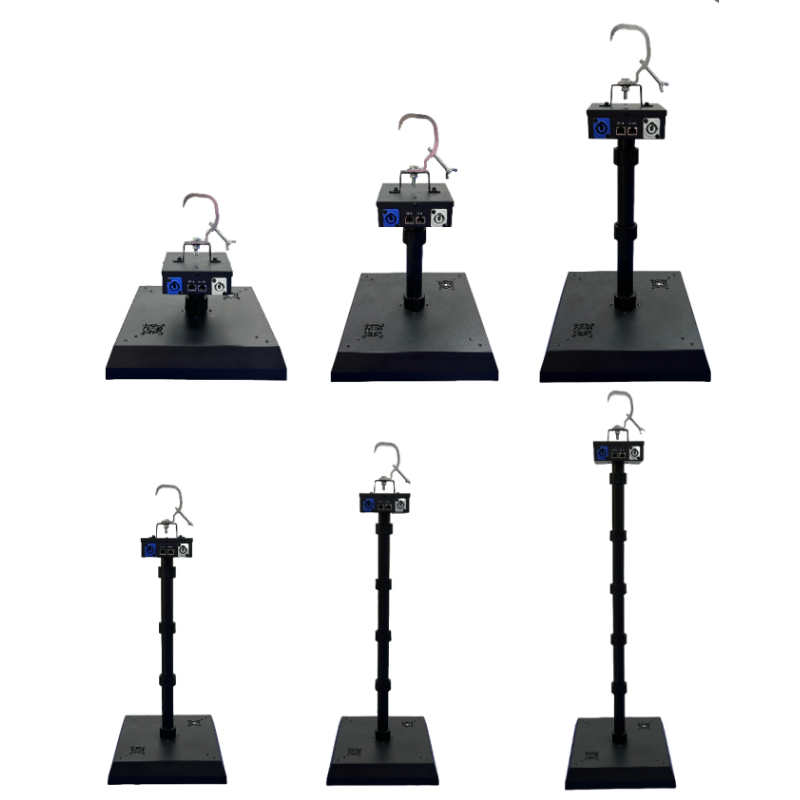

This new wave light is designed for entertainment and performance scenarios. Featuring a matrix-style adjustable light pole structure, it breaks the flat programming limit of traditional Madrix. Customize the pole length to create dynamic wave shapes, delivering rich 3D light layers with simple programming.

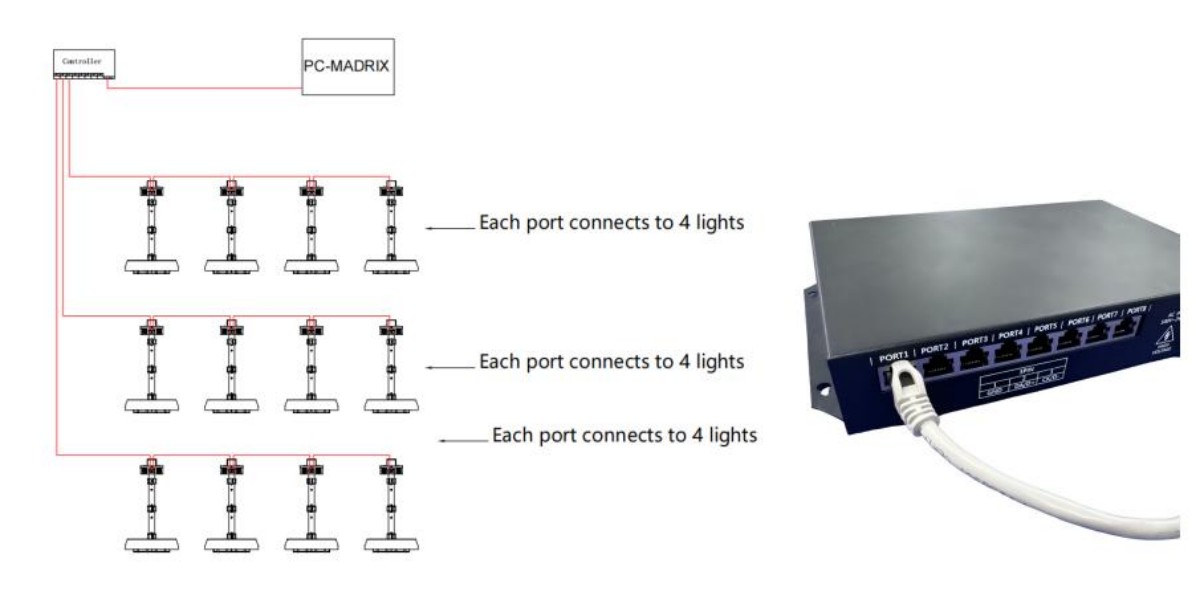

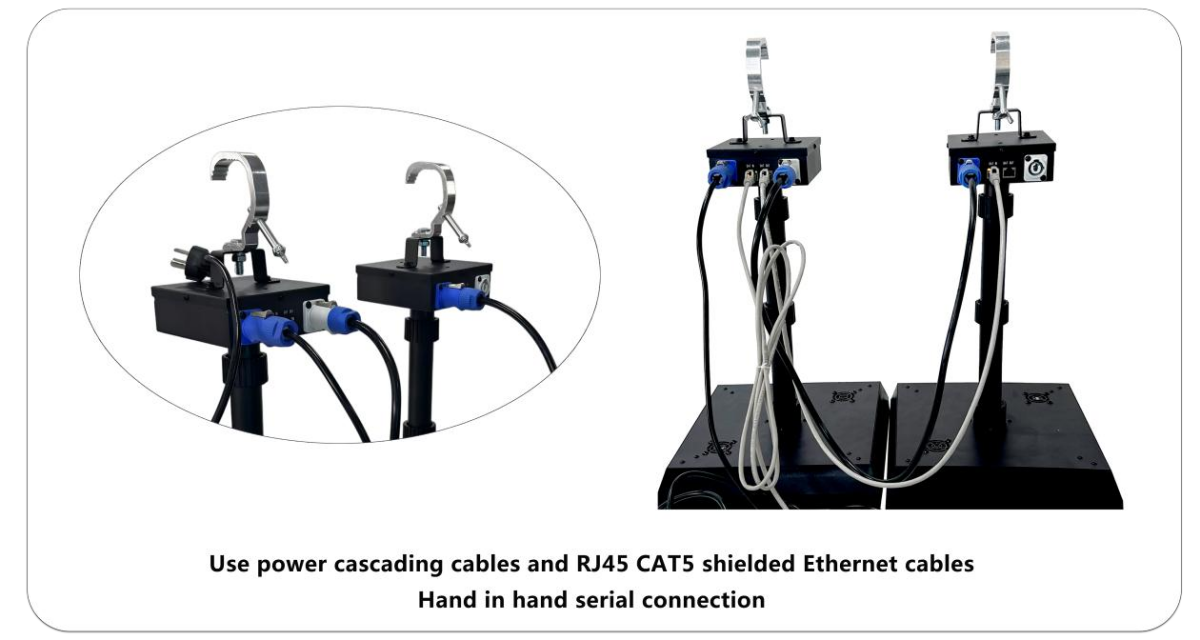

It suits various applications: rentals, lifting scenarios, and entertainment venues like bars, stages, and KTVs. With 110V-220V voltage, daisy-chain connection, and RJ45 interface, wiring is simplified. Equipped with 24 x 2W color-changing lights + 225 pixel panels, it achieves wide-angle spotlight coloring, soft light effects, and VJ material playback.
Controlled via SPI protocol (supports MADRIX, DMX512, ARTNET, DVI), it delivers 3D immersive visuals with just flat programming — a flexible and stunning visual ambiance tool.
| Parameter | Details |
|---|---|
| Voltage | 110V-220V |
| Power | 65W |
| IP Rate | 33 |
| Size | 650*300*300mm (Three-light pole) |
| Protocol | TTL |
| Material | PC+ABS+Metal |
| Pixels | 249 (Wash LED*24 + Pixel Screen*225) |
| Lifespan | 50000h |
| Weight | 2.65KG |
| Lighting effects | Wash + Pixel Screen |

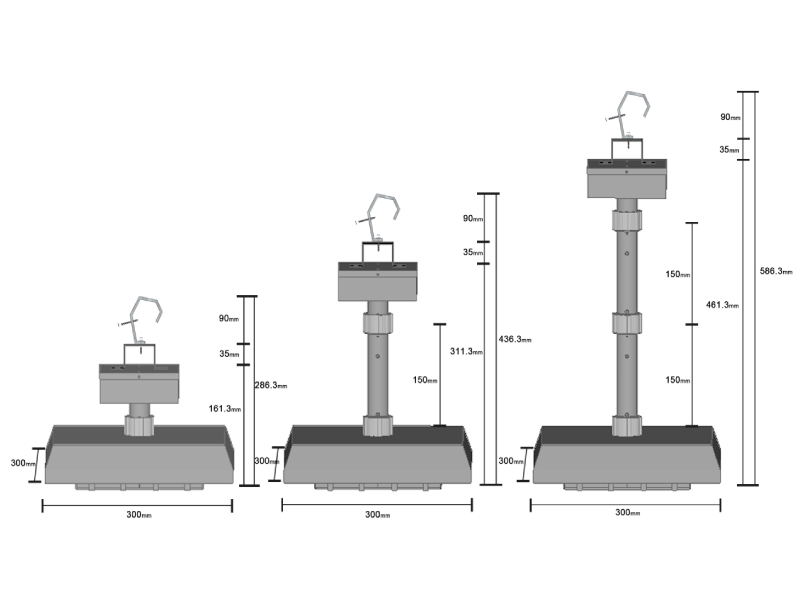

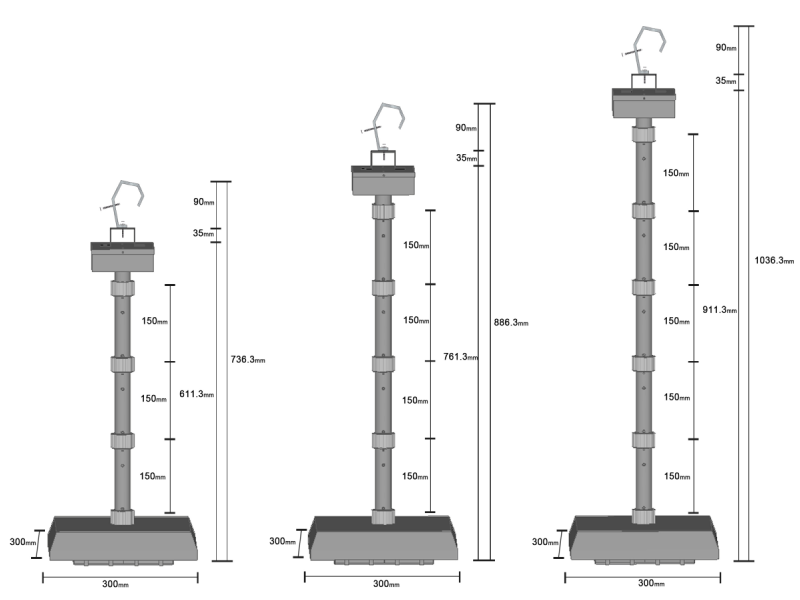

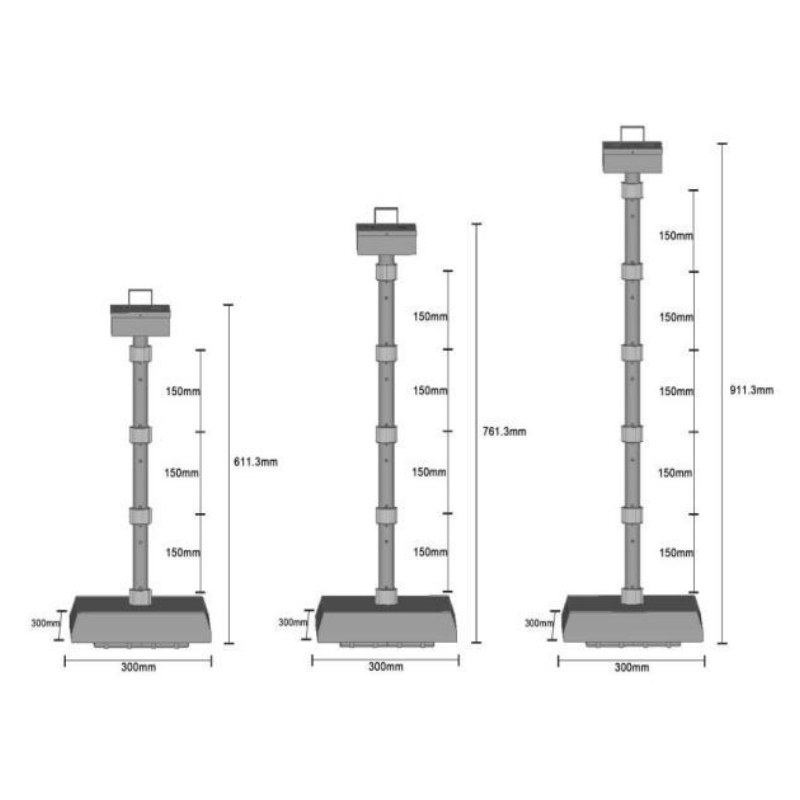

| Connector Bar length (per section) | 15cm |
| Channel | RGB |
| SMD | WS2812 5050RGB |
| Cascade length | Sections 1 to 15 |

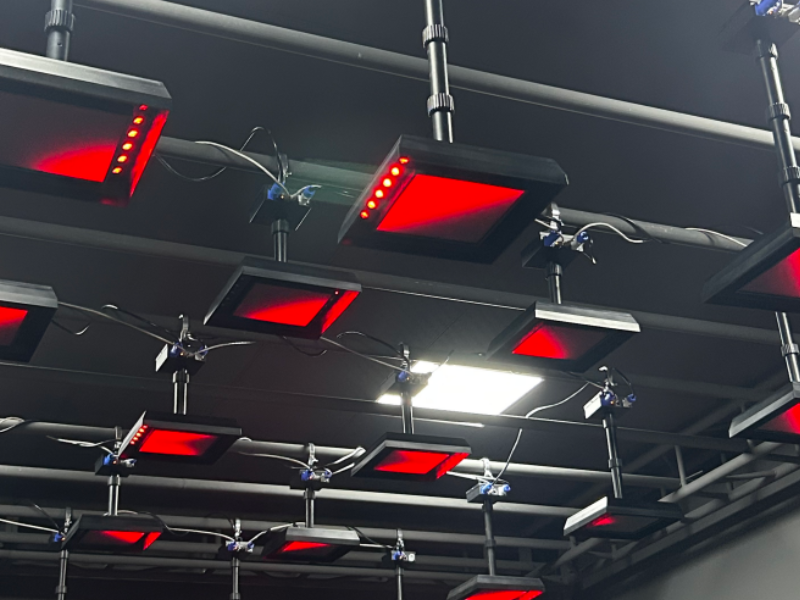

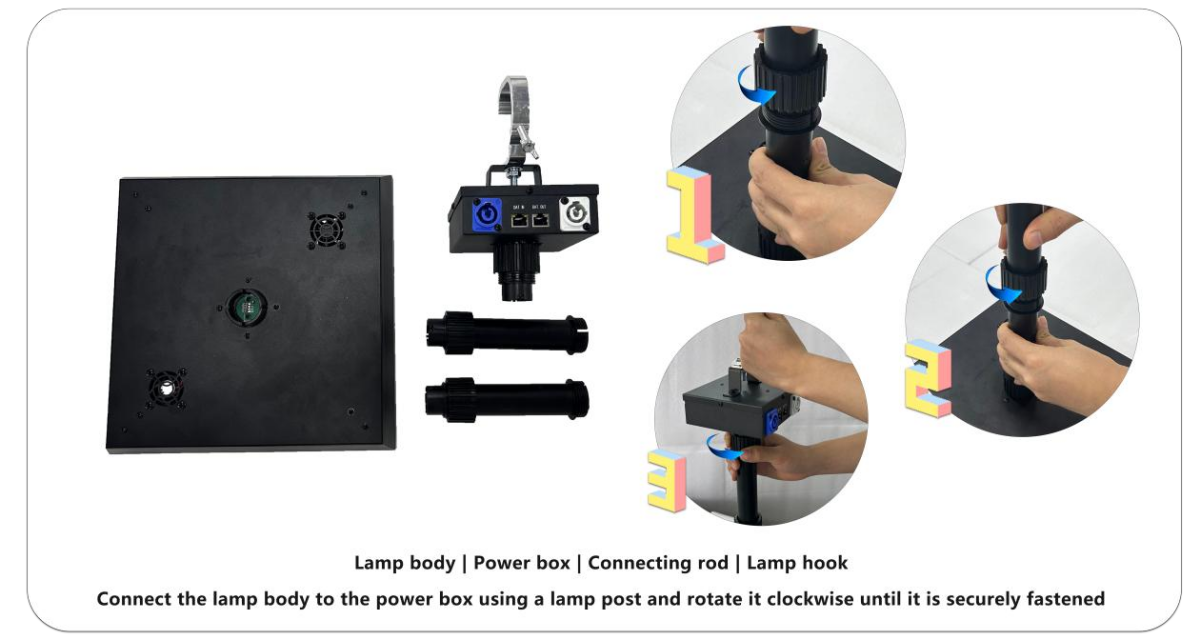

According to the on-site environment, different installation methods can be selected:
