OEM Xiaosan 3D Matrix Bamboo Light Manufacturer, Factories

The 3D Matrix Bamboo Light by XIAOSAN is a top-tier lighting fixture designed for dynamic and captivating lighting effects in various professional settings. Ideal for nightclubs, bars, weddings, and parties, this product offers advanced features and precise control to enhance any event. Here’s a detailed overview of its specifications and application scenarios.

Product Description

Description
  • Three-dimensional matrix arrangement with simple design and neat structure.
  • Integrated lighting effects combining wash lights, beam lights, and RGB pixel lights, allowing individual control.
  • Each bamboo-joint section consists of 8×2W wash LEDs, a 12-pixels RGB light strip, and a single 9W beam light at the base.
  • Supports multi-layer free splicing, unrestricted by venue height limitations, enabling versatile environmental configurations.
  • Multi-layers of wash light stacking achieves varying degrees of three-dimensional spatial perception through different angles and heights.
  • SPI signal protocol, controllable via MADRIX, DMX512, Art-Net, DVI, and other control systems.
  • 110V-220V voltage range with cascade connection for simplified wiring.
  • The signal connection is input through the RJ45 network port terminal, ensuring stable and convenient connectivity.

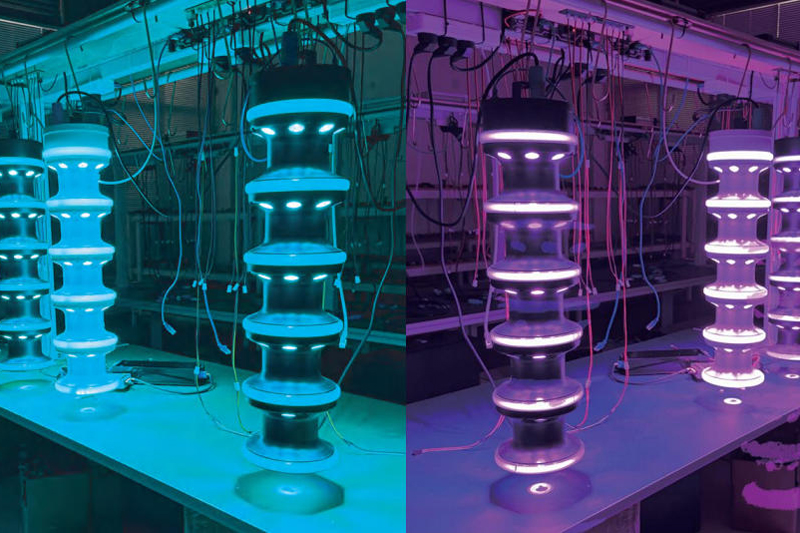

3D Matrix Bamboo Light Effect

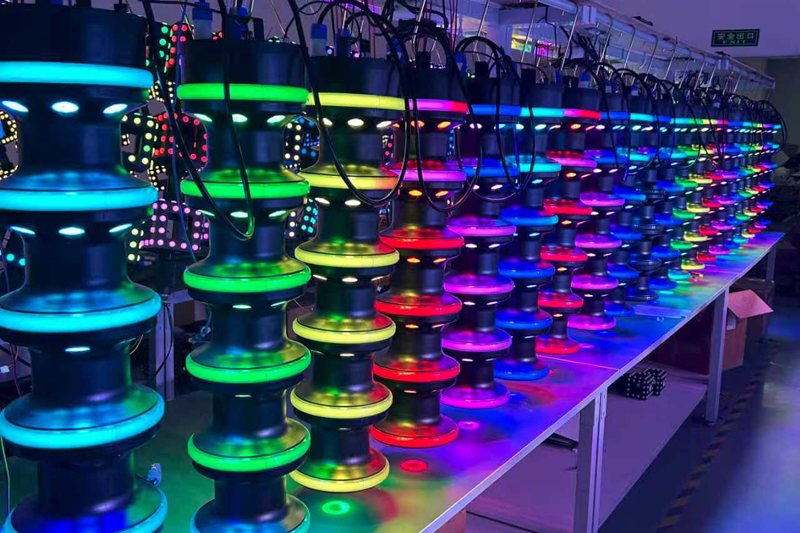

3D Matrix Bamboo Light Setup
Product parameters
Name of Product 3D Matrix Bamboo Light
Voltage AC 110V / 220V
Power 50W/ 80W/ 110w/ 140W/ 170W
Product Size (L* W * H) 210*170*170MM 330*170*170MM 450*170*170mm 570*170*170MM 675*170*170MM
Length(w/o hook) 21CM/ 33CM/ 45CM/ 57CM/ 69CM
IC Type WS2818
Lamp Bead Model LED :SMD 5050 Wash LED : SMD 3535 Beam Light:SMD5050
Channel GRB
Pixel Numbers 33/53/73/93/113 pixels
Material PC+ ABS+ Iron
Control Method TTL
Waterproof Level IP33
Gray Scale 256
LED Color RGB
Signal Protocol SPI
Applications Disco, Nightclub, Bars, lounges, stages, performances, rentals, KTV, etc

The Colorful 3D Bamboo Knot Lamp is a patented product, featuring a novel market design, diversified product effects, convenient installation, easy wiring, and an exquisite appearance with a private mold structure. It features moderate dimensions, controllable costs, and the option for customizable cascading lengths. Compared to traditional lighting, it is significantly easier to install and helps save installation labor.

From raw material procurement and design to production, management, and testing, every step of the product process strictly adheres to national standards to ensure strict quality control and standardization. High-quality OEM and ODM products alongside excellent services are offered to customers worldwide. The focus on quality assurance is supported by reliable after-sales service, including a one-year warranty on all lighting products. Competitive pricing is provided to meet diverse customer needs.

Product Description Details
Application
Video
Bamboo Light Concert Project In India
Frequently Asked Questions
What control protocols does the 3D Matrix Bamboo Light support?
The light supports the SPI signal protocol and can be controlled using TTL methods through systems such as MADRIX, DMX512, Art-Net, DVI, and other standard controllers.
What is the light source configuration in each section?
Each bamboo-joint section is equipped with 8×2W wash LEDs, a 12-pixels RGB light strip, and a single 9W beam light at the base, allowing for multi-layer integrated effects.
What sizes and power options are available?
The light comes in lengths of 21CM, 33CM, 45CM, 57CM, and 69CM, with corresponding power consumption options of 50W, 80W, 110W, 140W, and 170W.
Is this light suitable for outdoor use?
The product has a waterproof rating of IP33 and is constructed from durable PC, ABS, and Iron materials, making it ideal for indoor entertainment venues like clubs, stages, and lounges.
Does the product support cascading connections?
Yes, it supports a wide voltage range of 110V-220V with cascade connection options, which greatly simplifies the wiring process and reduces labor costs.
Does the lighting product come with a warranty?
Yes, all lighting products include a one-year warranty, guaranteeing quality assurance and reliable after-sales service.
