Xiaosan Light
1 / 4
| Voltage | AC100~240V 50/60HZ |
| Power | 150W |
| Place of Origin | China |
| Lifting Stroke | 9 meters |
| Maximum Load | ≤2KG |
| Speed | ≤0.5m/s |
| Fall Protection | Physical braking, electronic protection. |
| LED Chips | 8 x 15W 4-in-1 LEDs, 8 groups of 1W 96 gold/color LEDs |
| Control Method | DMX512, Auto-running, Master-Slave. |
| Channels | 18CH |
| Dimming | 0~100% linear dimming |
| Features | Lifting, beam, flash |
| Operating Temperature | Indoor -20°C~50°C |
| Strobe Frequency | 1~30HZ |
| Appearance | Metal, Flame-retardant Plastic, Black |
| Connection Method | DMX512 input/output / Power input/output. |
| IP Rating | IP20 |
| Lighting solutions service | Lighting and circuitry design, Project Installation |
| Working Time (hours) | 50000 |
| Lifespan (Hours) | 50000 |

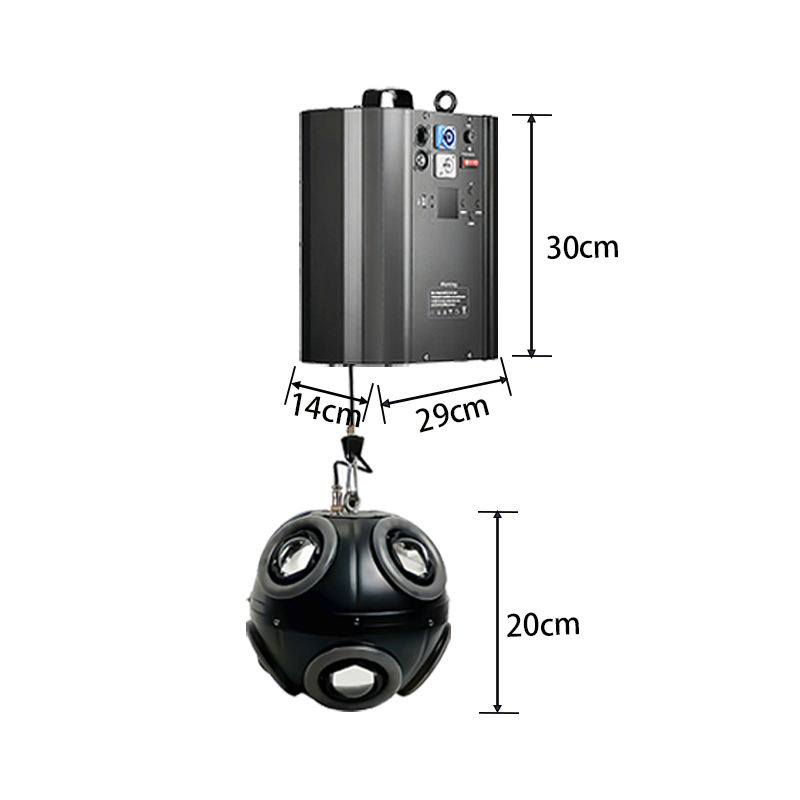

| Lifting Machine Dimensions | 250*150*320mm |
| Lifting Machine Weight | 7.5KG |
| Ball Diameter | 21CM |
| Ball Weight | 1.2KG |
| Ball Pack (8 in 1 Carton) Dimensions | 55*55*56CM, Gross Weight: 14KG |
| Lifting Machines (2 in 1 Carton) Dimensions | 37*32*46CM, Gross Weight: 16KG |
| Your Logo | YES |
The system features a highly stable winch that monitors excess weight and slack. Additionally, it integrates a physical braking mechanism, electronic protection, and an electromagnetic valve for advanced fall protection.

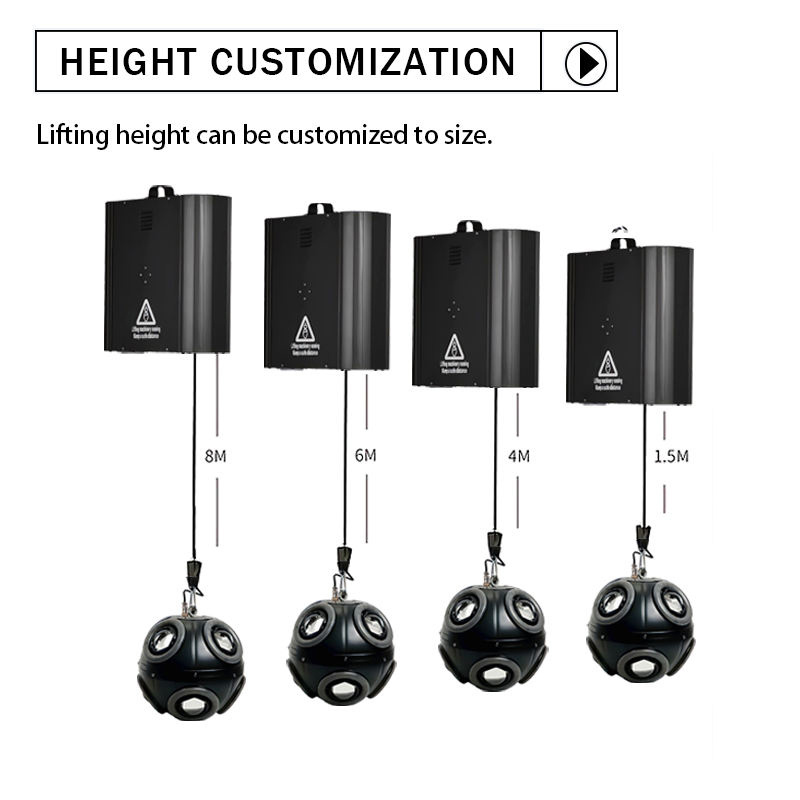

Standard winch options include 3-meter and 6-meter strokes. We also support 9-meter and 12-meter lifting strokes, with fully customizable options available to fit specific stage needs.
Yes, it features light and audio synchronization control, allowing you to synchronize lighting movements and effects with the music.
The system supports the standard DMX512 protocol, Auto-running, and Master-Slave control modes, making it compatible with various DMX controllers and lighting solutions.
The system has a rated working lifespan of up to 50,000 hours. The maximum load capacity is ≤2KG, and it can operate at lifting speeds of up to ≤0.5m/s.

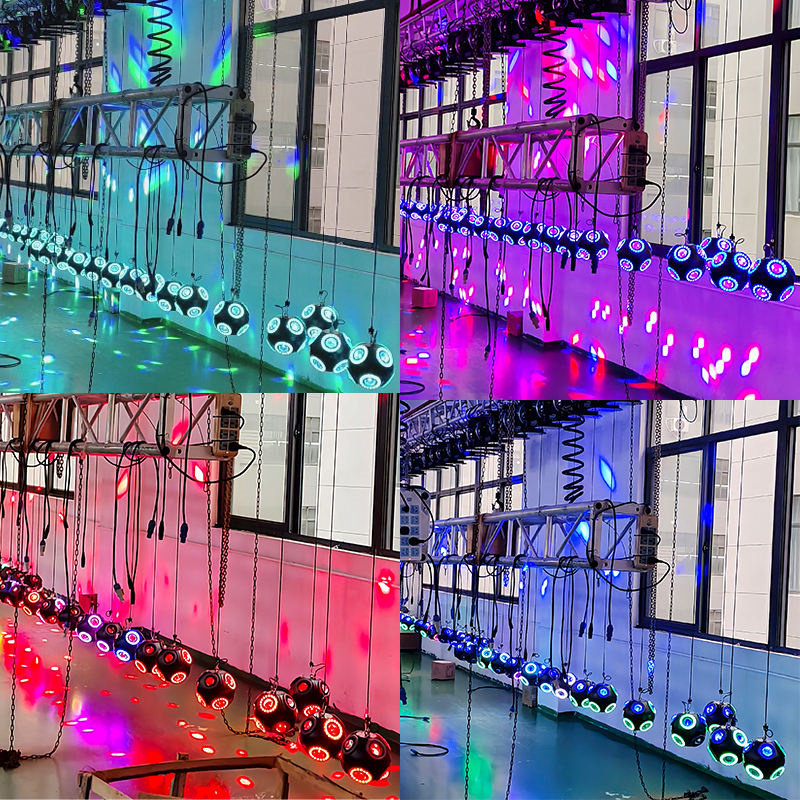

It is widely used in clubs, bars, discos, KTV rooms, concerts, stage shows, television studios, theaters, events, and for decorative ceiling installations.
